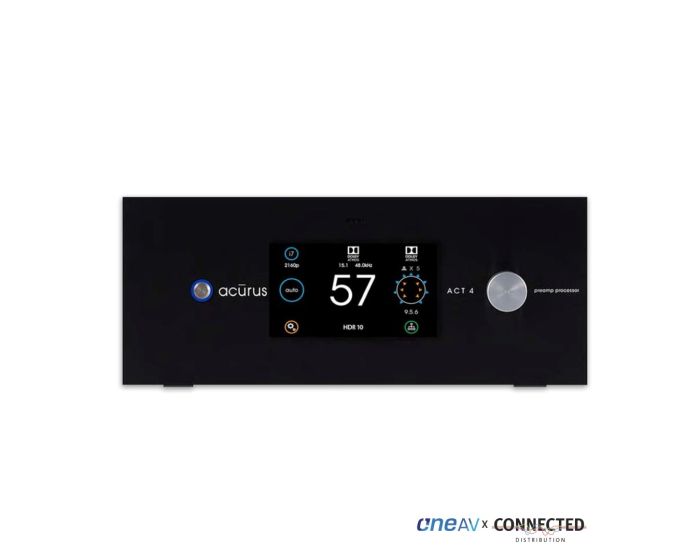

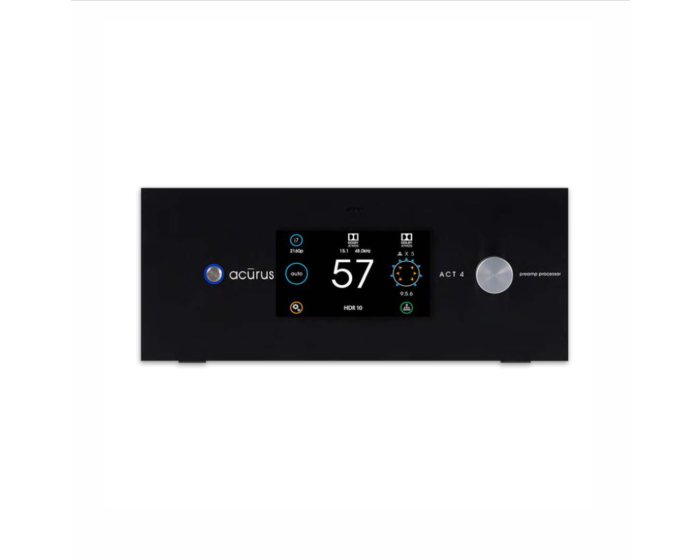

Acurus ACT4-20 Rack-Mount AV Processor
The ACT 4 represents a revolution in 3D-audio home cinema processors. Designed to be the heart of a modern UHD home theater, the ACT 4 combines ultimate audio performance, control flexibility, and the absolute latest immersive sound technologies. With 20 channels of immersive audio the ACT 4 meshes the celebrated engineering of Acurus with the power of advanced cinema technology--all in perfect harmony.
The ACT 4 also sets a new standard for ease of installation and use. An intuitive, full-color, touch-sensitive front panel display simplifies setup and operation. Controllable via 3rd-party systems, the ACT 4 also offers web setup and control which enables operation of an ACT 4 theater from anywhere within the home via mobile device. The ACT 4 has both balanced and unbalanced outputs which allow for flexibility in any application.
The ACT 4 supports Acurus' own room correction technology, ASPEQT, a four-microphone acoustic optimization system which is incredibly simple to use, yet powerful enough for the most challenging cinema environments. An ACT 4 cinema tuned by ASPEQT defines the pinnacle in home entertainment. An ACT 4 processor features 15 main outputs and 1 subwoofer output for native decoding and rendering of immersive audio streams with 4 additional subwoofer outputs for larger speaker layouts such as 9.5.6 or 9.7.4.
Specifications
- Frequency response: 20 – 20kHz ±0.1dB
- SNR: >110dB (A-wt.)
- THD: <0.02% (20Hz – 20kHz)
- Max output: 3.5Vrms, 7Vrms (Sub out)
- Power consumption: 70W (max), <1W (standby)
- Front panel display: 7” touch-sensitive LCD!
- Serial: 2 x DB-9, Full 2-way control, 1 x USB A programming port
- Ethernet: 1 x Ethernet, Web interface & 2-way IP control via UDP
- 12V trigger: 1 x 3.5mm IN, 4 x 3.5mm OUT
- Charging port: 2 x USB 5V, 2A
- Stereo analog audio inputs: 4 x Gold-plated (RCA) L/R unbalanced, 1 x XLR L/R balanced
- Stereo phono input: 1 x Gold-plated (RCA) L/R pair
- Digital audio inputs: 3 x coax (RCA) and 3 x Optical
- Multi-channel analog audio inputs: 1 set 8 Gold-plated (RCA) 7.1 configuration
- Multi-channel analog audio outputs: 1 set 14 Gold-plated (RCA), 1 set 14 XLR 11.3 configuration
- Decoding: Surround Formats Dolby Atmos, DTS:X, up to 9.1.2
- Loudspeaker Adjustments: EQ (5 parametric), Delay, Polarity, Large/Small, Crossover Frequency
- HDMI: 8 in x 2 out, 4K pass thru, HDCP2.2 (1 in, 1 out)
- Product dimensions: 7” (17.8cm) x 17” (43.2cm) x 15.0” (38.1cm)
- Product weight: 30 lbs. (13.6kg)!
- Finish: Black satin anodized, laser-etched logo, white rear panel!
- Carton dimensions: 12” (25.4cm) x 22” (55.9cm) x 20” (50.8cm)
| Shipping Weight (kg) | 14.500000 |
|---|---|
| Colour | Black |
| Manufacturer | Acurus |
| Type | AV Preamplifier |
| MSRP | £14,915.84 |
