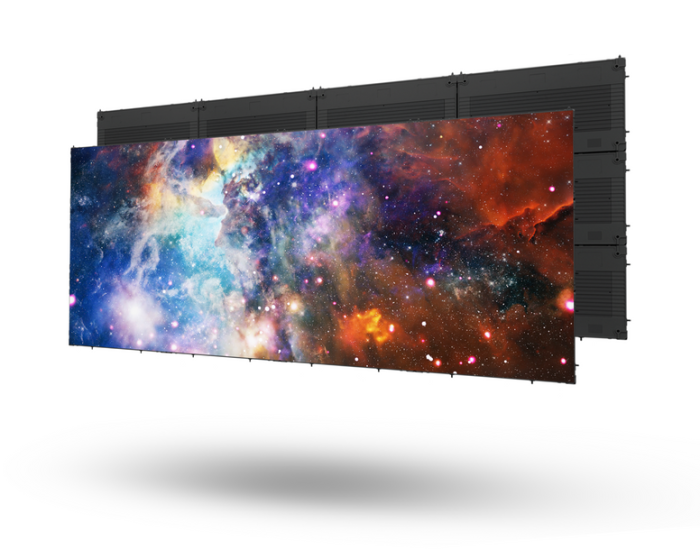

AWALL MicroLED C Series
The Next-Generation MicroLED Display
If you're chasing true cinematic immersion, AWALL delivers: stunning 115% NTSC color accuracy, pitch-black contrast, and ultra-bright 1,200-nit visuals that look jaw-dropping in any light. The ultra-slim, modular design means it fits your space like it was made for it — whether you're building out a cozy movie den or a full-blown media temple.
Latest COB Technology
AWALL’s Flip-Chip Chip-on-Board (COB) LED display technology brings tighter pixel spacing ranging from 1.25mm to 0.9mm with increased durability and reliability combined with ultra low power consumption for an overall improved experience.
High Contrast
Experience stunning visuals with our display, boasting an impressive 12000:1 contrast ratio. It’s the perfect blend of clarity and impact for your content.
Sizes & Aspect Ratios
AWALL comes in multiple preconfigured sizes: 102", 108", 129", 135", and 162". They also offer 16:9, 21:9, and cinemascope aspect ratios. Easily create your own viewing experience.
4K/UHD & High Color Gamut
AWALL’s cutting-edge display technology produces an impressive 115% NTSC high color gamut, delivering ultra-clear image renderings and vibrant, richer color levels.
3840 Refresh Rate
Experience flawless visuals with ultra-high refresh rate that eliminates screen drag, blur, and lag resulting in an exceptionally smooth and silky image.
Multi View
Users can easily watch multiples sports games, streams, etc. with the multi view feature. There are endless possibilities and combinations.
45% Lighter / 55% Thinner
AWALL revolutionizes microLED display technology by being 45% lighter and 55% thinner than traditional LED displays. Our slim pixel pitch cabinets are crafted to be ultra-thin ensuring elegant and inconspicuous installations.
Zero Harmful Blue Light
AWALL’s “Zero Harmful Blue Light” technology shields your eyes from harmful high-energy short-wave blue light in the 420-450mm range. Enjoy long-term viewing without eye strain ensuring optimal eye health.
Easy to Clean
The display's easy-to-clean surface ensures convenience and durability. Simply wipe with a soft cloth for a pristine look.
Specification
| Model | 75" | 81" | 108" | 135" | 162" |
|---|---|---|---|---|---|
| Screen Size & Ratio | 75"
21:9 |
81"
16:9 |
108"
16:9 |
135"
16:9 |
162"
16:9 |
| Dimensions & Panel Dimensions | 70.99"x26.7"
70.87"x26.58" |
70.99"x39.98"
70.87"x39.86" |
94.72"x53.39"
94.49"x53.15" |
118.35"x66.67"
118.11"x66.44" |
141.97"x79.96"
141.73"x79.72" |
| Bezel Width & Modules No. per Screen | 3mm
48 |
3mm
72 |
3mm
128 |
3mm
200 |
3mm
200 |
| Resolution & Pixel Pitch | 1440x540, 1920x720
1.2mm, 0.9mm |
1440x810, 1920x1080
1.2mm, 0.9mm |
1920x1080, 2560x1440
1.2mm, 0.9mm |
2400x1450, 3200x1800
1.2mm,0.9mm |
3840x2160
1.2mm, 0.9mm |
| Contrast Ratio & HDR | Native: 12,000:1
Dynamic: Infinite HDR10 |
Native: 12,000:1
Dynamic: Infinite HDR10 |
Native: 12,000:1
Dynamic: Infinite HDR10 |
Native: 12,000:1
Dynamic: Infinite HDR10 |
Native: 12,000:1
Dynamic: Infinite HDR10 |
| Diode Type, Viewing Angle, Bit Depth | Flip-Chip Chip-on-Board
160/160 (HV) 13-14bit (Internal Processing: 19bit) |
Flip-Chip Chip-on-Board
160/160 (HV) 13-14bit (Internal Processing: 19bit) |
Flip-Chip Chip-on-Board
160/160 (HV) 13-14bit (Internal Processing: 19bit) |
Flip-Chip Chip-on-Board
160/160 (HV) 13-14bit (Internal Processing: 19bit) |
Flip-Chip Chip-on-Board
160/160 (HV) 13-14bit (Internal Processing: 19bit) |
| Weight | 82lbs | 125lbs | 220lbs | 341Ibs | 500lbs |
| Peak Power Consumption & Heat Generation | 115/350W, 80/240W
475/1442 BTU, 330/990 BTU (Typ/Max) |
160/520W, 120/360W
660/2145 BTU, 495/1485 BTU (Typ/Max) |
210/630W, 290/930W
870/2,600 BTU, 966/2,890 BTU(Typ/Max) |
440/1300W, 480/1450W
1,280/3,838 BTU, 1,423/4,265 BTU (Typical/Max) |
640/1850W, 770/2000W
1,305/3,900 BTU, 1,449/4,335 BTU(Typical/Max) |
| Brightness & Brightness Uniformity | 1,200 nits/600 nits (Peak/Max);
≥97% |
1,200 nits/600 nits (Peak/Max);
≥97% |
1,200 nits/600 nits (Peak/Max);
≥97% |
1,200 nits/600 nits (Peak/Max);
≥97% |
1,200 nits/600 nits (Peak/Max);
≥97% |
| Refresh Rate & Frame Rate | 3,840Hz; 60Hz | 3,840Hz; 60Hz | 3,840Hz; 60Hz | 3,840Hz; 60Hz | 3,840Hz; 60Hz |
| Internal Scaling, 24FPS, Fanless | Yes | Yes | Yes | Yes | Yes |
| Color Uniformity, Color Gamut, Color Temperature | Cxy≤±0.003
≥90%(BT.2020) 3,000-9,300K |
Cxy≤±0.003
≥90%(BT.2020) 3,000-9,300K |
Cxy≤±0.003
≥90%(BT.2020) 3,000-9,300K |
Cxy≤±0.003
≥90%(BT.2020) 3,000-9,300K |
Cxy≤±0.003
≥90%(BT.2020) 3,000-9,300K |
| Material & Installation | ADC 12 Aluminum Alloy
Front Installation |
ADC 12 Aluminum Alloy
Front Installation |
ADC 12 Aluminum Alloy
Front Installation |
ADC 12 Aluminum Alloy
Front Installation |
ADC 12 Aluminum Alloy
Front Installation |
| IP Rating | IP65/IP30
(Front/Rear) |
IP65/IP30
(Front/Rear) |
IP65/IP30
(Front/Rear) |
IP65/IP30
(Front/Rear) |
IP65/IP30
(Front/Rear) |
| LED Lifetime | 100,000H | 100,000H | 100,000H | 100,000H | 100,000H |
| Operating Temperature & Humidity | -20˚C~50˚C
10%RH~95%RH |
-20˚C~50˚C
10%RH~95%RH |
-20˚C~50˚C
10%RH~95%RH |
-20˚C~50˚C
10%RH~95%RH |
-20˚C~50˚C
10%RH~95%RH |
| Storage Humidity | 10%RH~80%RH | 10%RH~80%RH | 10%RH~80%RH | 10%RH~80%RH | 10%RH~80%RH |
| Controller & OS Compatibility | Built-In
Windows,macOS, iOS,Android |
Built-In
Windows,macOS, iOS,Android |
Built-In
Windows,macOS, iOS,Android |
Built-In
Windows,macOS, iOS,Android |
Built-In
Windows,macOS, iOS,Android |
| Certifications & Warranty | CE/CB/ETL/FCC;
2 Years (Standard) |
CE/CB/ETL/FCC;
2 Years (Standard) |
CE/CB/ETL/FCC;
2 Years (Standard) |
CE/CB/ETL/FCC;
2 Years (Standard) |
CE/CB/ETL/FCC;
2 Years (Standard) |
| Type | Video Wall Screen |
|---|---|
| Manufacturer | AWALL |
| Product Range | C Series |
| MSRP | £16,300.00 |
