Drop Shipped Dispatched directly from manufacturer.
Available for backorder (Contact for lead time)
PDU with 1 x 16A, 4 x IEC C13, 12x terminal clamp (12V/24V DC max. 4A), 5 x terminal clamp/ USB A (5V DC max. 3A USB only power), 2 sensor connectors, SSL IPv6 SNMPv3, OVP RCM type A
Control this PDU remotely using HDANYWHERE cloud and Zone Processor. Click here for more details.

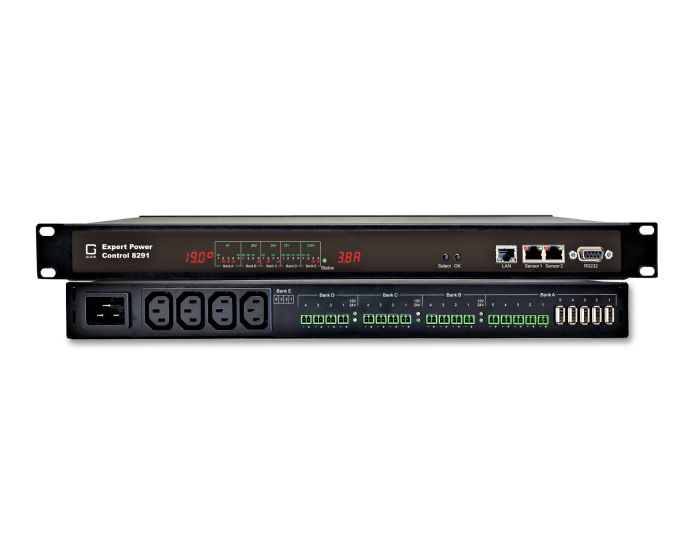

Expert Power Control 8291-2 for more operational security and energy efficiency in 19-inch installations.
Demonstrably fewer and shorter outages of your critical IT and AV infrastructure.
Detect AV and IT problems at an early stage: Proactive power and environment monitoring.
Measurably increased energy efficiency (Green IT and AV): Electricity cost and CO2 savings through controlled switching off of devices.
Integrate anywhere: Quickly and easily integrate anywhere with API interface: REST API, HTTPS, SNMP, Telnet and MQTT.
Fix AV and IT problems quickly and effectively: Remote reboot or with the self-healing function (automatic restart) thanks to integrated watchdogs.
Key Features:
Event and schedule controlled switching.
Connection of AC and DC consumers with different voltages and connection types.
Precise current metering of up to 9 units and residual current.
2 connectors for plug-and-play sensors.
Fast and easy installation.
NTP function can be activated.
Integrated overvoltage protection type 3.
Each DC output is fused via an eFuse.
Switching function:
Each power port can be switched via HTTP/S, Telnet, SSH, SNMP or command line interface, as well as via serial interface.
17 DC switchable power ports with 24 V, 12 V and 5 V (industrial clamp, USB a).
4 AC switchable power ports with 230 V (IEC C13).
Programmable on/off sequences for remote reboots (Remote Reboot).
Power ports can be switched when preset sensor thresholds are exceeded.
Self-healing function thanks to 21-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary.
Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure.
Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second.
Metering function:
Power consumption metering (kwH) with 2 energy counters: one counter counts consistently, the other counter is resettable.
Current metering for 5 V, 12 V and 24 V.
Maximum available DC current per port: 4 A.
Current distribution of the banks: 5 V (max. 8.8 A), 12 V (max. 6 A), 24 V (max. 12.5 A).
Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr).
Metering of differential current type A (mA).
2 connectors for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure.
Security:
Integrated type 3 overvoltage protection prevents damage to the device and connected loads.
Each power port is protected against short circuits thanks to integrated eFuse.
Integrated industrial power supply (max. 300 W) with active harmonic filter (PFC).
MTBF value of the pwoer supply unit: Approx. 1.8 milion operating hours.
Long-life High-Inrush Relays prevent welding of relay contacts during inrush current peaks.
Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet).
Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH.
Access protection by IP access control.
Encrypted communication through SSH.
Password protected access.
Beeper for audible alarm when sensor limits are exceeded/deceeded.
Operation:
Easy-to-read LED display for displaying total current, IP address and sensor values.
Firmware update via Ethernet during operation (no restart required).
Simple and flexible configuration via web browser, Windows or Linux program.
Dynamic assignment of an IP address via DHCP or manual assignment of static IP address.
Rapid commissioning thanks to free and reliable drivers from GUDE's technology partners.
