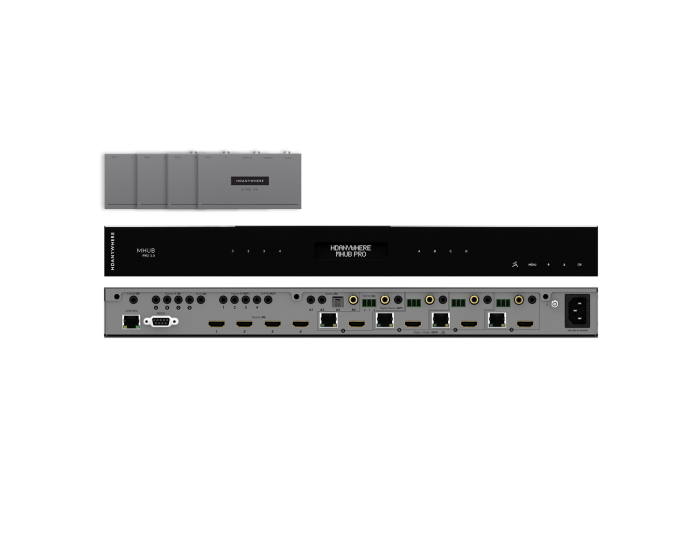

HDANYWHERE - MHUB PRO 2.0 (4x4) B-Grade

SKU: B.2.50.840

Please login for pricing

Dispatched Today! (Order By 3pm)

MHUB PRO 2.0 is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 40 metres away over a single Cat6 cable with no latency

Main Description

18G (600MHz) HDMI® 2.0 and HDCP 2.2 compatible
Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®
Supports all current audio formats including Dolby Atmos® and DTS:X®
HDBaseT 2.0 with PoH
Internal video scaling (4K>1080p on every output)
Internal 12x4 audio matrix switcher with flexible grabbing audio (source or display HDMIARC) via digi coax, or audio downmix via stereo jack
Internal uControl IO expander universal controller
Control paths via TCP/IP, two-way IR and RS232
Backlit fade in/out touch panel controls
App/web GUI for easy config (MHUB-OS) with remote management (HDA Cloud)
Sold as a complete install package, with all receivers, IR cables and mounting kit included

Does not support ethernet passthrough.

More Information

More Information
Shipping Weight (kg)	6.250000
Manufacturer	HDANYWHERE
Type	Video Matrix
IO Format	4x4
Distance at Max. Resolution	40m (4K)
Product Range	MHUB
Warranty	3 years
Colour	Black & Silver
Main Power	110-240V
Form Factor	1U
Input Types	HDMI
Audio Input Types	3.5mm Stereo, Coax, S/PDIF
Maximum Video Inputs	4
Supported Outputs	HDMI, HDBaseT
Audio Output Types	3.5mm Stereo, Coax
Maximum Video Outputs	4
Supported Video Resolution	4K 60Hz 4:4:4
Control Method	IR, RS232, TCP/IP, Web GUI, App Control, Alexa
IR Control	2-Way
Multiroom Capable	Yes
HDMI Version	HDMI® 2.0
HDCP	HDCP 2.2

Downloads

Downloads
Data Sheet	https://drive.google.com/file/d/1vpTK_ZcRggzfSvE4BSroW2hATBAOWtZf/view?usp=drive_link
Product Manual	https://drive.google.com/file/d/1gPvMeXDvJ_86FSrD3CtqQLbk-ZpBCnxH/view?usp=drive_link
Other Info	https://drive.google.com/file/d/1wm-DwkkkuUZP_gZo4mtJDfSuIxwecJbZ/view?usp=sharing
