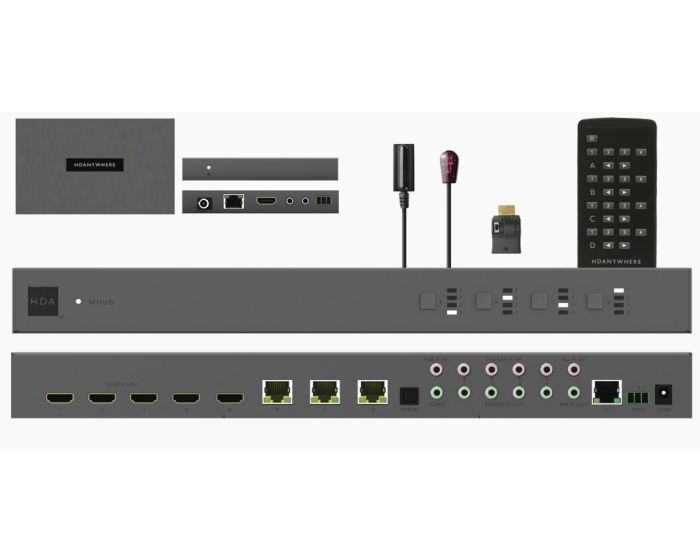

Cloud monitorable 4x3+1 HDMI/HDBT+HDMI matrix system with a 40m UHD 4K or 70m 1080p transmission range. An integrated IP>IR control processor enables property-wide control of all the connected sources and displays via the free uControl universal remote App or Alexa voice commands.

Features:

HDMI® 2.0 featured - supports up to 18Gbps
All display receivers powered via PoH
IR over HDMI injector dongle included
Web GUI for easy config and setup (MHUB-OS)
Remote system monitoring (HDA Cloud)
Advanced EDID management
Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®
Supports all current audio formats up to and including Dolby Atmos® and DTS:X®
Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack
4K>1080 down/up-scaling receiver option available
Sold as a complete install package, with Receiver, IR cables included.

More Information

More Information
Shipping Weight (kg)	4.000000
Manufacturer	HDANYWHERE
Type	Video Matrix
IO Format	4x3+1
Distance at Max. Resolution	40m (4K)
Product Range	MHUB
Warranty	2 years + 3 years with Cloud registration
Colour	Black & Silver
Main Power	110-240V
Form Factor	1U
Input Types	HDMI
Audio Input Types	N/A
Maximum Video Inputs	4
Supported Outputs	HDMI, HDBaseT
Audio Output Types	3.5mm Stereo, Optical
Maximum Video Outputs	4
Supported Video Resolution	4K 60Hz 4:4:4
Control Method	IR, RS232, TCP/IP, Web GUI, App Control, Alexa
IR Control	2-Way
Multiroom Capable	Yes
HDMI Version	HDMI® 2.0
HDCP	HDCP 2.2

Downloads

Downloads
Data Sheet	https://drive.google.com/open?id=1I3ACE5LV9mB64RnGG65IC7naC1safk2K
Quick Start Guide	https://drive.google.com/open?id=1I3ACE5LV9mB64RnGG65IC7naC1safk2K
Other Info	https://drive.google.com/file/d/1wm-DwkkkuUZP_gZo4mtJDfSuIxwecJbZ/view?usp=sharing
