SKU: HDF0170
World First HDMI 2.1 EDID Manager with webserver and Android/iOS APP.
Up to FRL5/40Gbps/1200MHz signal passthru with VRR support + FRL6/48Gbps/1500MHz under testing.

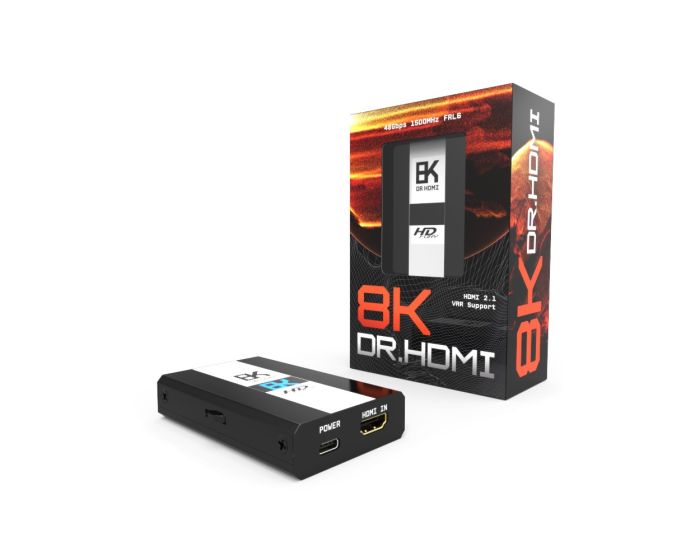

The Dr.HDMI 8K Kit includes:
With FRL6/48Gbps/1500MHz support and an embedded HDfury webserver, Dr.HDMI 8K is the world most advanced EDID manager ever made.
Dr HDMI 8K can help to solve most HDMI issues such as handshaking issue, compatibility issue and/or any EDID related issue. It helps to keep a source always ON or tricked into a defined state which is especially useful for system integrators.
Dr HDMI 8K can also boost signal integrity and extend +5v signal through a HDMI/DVI-D chain. For example, it can work hands in hands with HDfury products to extend compatibility range. It can also be used to limit the source output resolution.
Dr HDMI 8K acts as an EDID manager, HDMI/DVI-D emulator and repeater that comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank, HTPC mode and more.
| HDMI revision: | HDMI 2.1 – FRL6/1500Mcsc/48Gbps. |
| Dr.8K Support: | FRL6/1500MHz/48Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, VRR, IMAX. |
| Max Resolution: | 8K60 4:4:4 8b, 8K60 4:2:2 12b, 4K120 4:4:4 10b or 8K60 4:2:0 10b. |
| TOTAL I/O: | 1 HDMI In, 1 HDMI Out, 1 RJ45/Ethernet (webserver), 1 USB-C (power). |
| EDID Banks: | 100 EDID banks (18 FHD, 48 UHD, 24 FUHD, 10 user programmable, 1 copy from Sink device). |
| Signal Integrity: | Up to 50 meters cable loss compensation. |
| Operating Modes: | EDID management, HTPC mode, +5V HDMI Power injector. |
| Special: | Reset HPD-event on the fly, Cable equalization, HDCP Pass-Thru, Lip Sync Pass-Thru, CEC Protocol Pass-Thru. |
| EDID Modes: | Custom EDID, Predefined EDID, Copy Sink, Mixing. |
| Control Modes: | Webserver, OLED and rotary switch with click and push buttons. |
| Audio support: | Atmos, DTS-X, Dolby True HD & DTS Master Audio, etc. |
| OLED: | 1″ Diagonal, 128×64, 2 colors. |
| Dr.8K Size: | 3.9″L x 2.3″W x 0.8″H – in CM: 10 x 6 x 2.2. |
| Dr.8K Weight: | 120g – 0.26 LBS. |
| Input Lag: | <1ms (nanoseconds count). |
| Other info: | 3D Support, DSD, eARC (HDMI2.1). |
| Shipping Weight (kg) | 0.200000 |
|---|---|
| Type | AV Testing Tool |
| Manufacturer | HDFury |
| Supported Video Resolution | 8K 60Hz 4:4:4 |
| Multiroom Capable | No |
| Product Manual | https://drive.google.com/file/d/1jddkoDCWRlVjqd9rlAX-Y9afdluYIi8p/view?usp=share_link |
|---|
