3G ULTRA Video Tiler: View 4 Sources on 1 Display
The 3G Ultra 759A Video Tiler gives any Just Add Power system the ability to mix four video sources from any Transmitter and combine those into a new, unique, compiled video source that can be viewed by any Receiver in the matrix.
Tile four (or more) HDMI sources on a single display in a variety of viewing modes: single-screen, video wall, or tiled video at the same time. Like any standalone Receiver, the Receivers in the 759A Video Tiler can watch any source in the system and can then be shown on any display in the system.
Multiple video tilers can be combined to add even more sources on a single display.
Features:
- Combine Video Tilers: Stack two or more tilers together to break the 4-tile limit. There is no limit to the number of tiles. A single tiler can show up to 4 sources on any receiver. Two tilers can show up to 7 sources on any Receiver. Each additional tiler adds 3 video sources to your Just Add Power system.
- Custom Layouts: Create and builld custom layout sizing and placement
- HDMI: Local HDMI Out
- Image Pull: Provides a more powerful user experience giving the control system the capability of displaying a preview image inside the user interface
- Resolution: Mix any resolution source
- Scalability: Fully compatible with all 3G Ultra products
- Any Transmitter in the 3G system can be input to the Tiler
- Distribute Tiled video to any Receiver in the 3G system
Specification:
- Bandwidth: Up to 600 Mbps
- Compliance: HDCP 2.2 | RoHS/FCC/CE
- Dimensions & Weight: 429 x 44.5 x 250mm | 17” x 1.75” x 9.8” inch | (19-inch rack, 1 RU) | 2.9 kg / 6.4 lb
- Encryption: Hardware-Based AES 256-bit | Encryption of network video signal
- Operating Temp: 0-60 °C / 32-140 °F

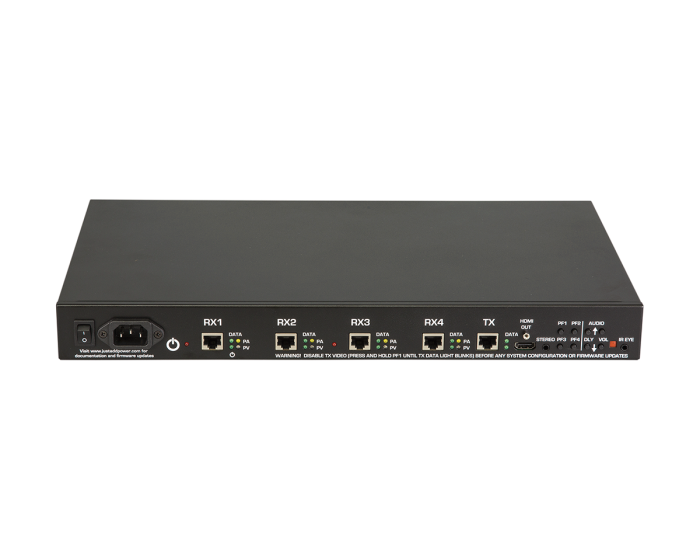

- Ports: Gigabit Ethernet (x5) | HDMI Out | 3.5mm Stereo Out | IR Eye
- Power Supply (included): IEC 60320 C13/C14 50 watts maximum
- Supported Video & Audio: Up to 4096x2160 2-channel PCM
| Shipping Weight (kg) | 2.900000 |
|---|---|
| Type | Video Tiler |
| Manufacturer | Just Add Power |
| Product Range | 3G |
| Application | Commercial |
| Resolution Support | 4K |
| Warranty | 5 years |
| Colour | Black |
| Form Factor | Rackmount |
| Input Types | Ethernet |
| Audio Input Types | N/A |
| Maximum Video Inputs | 4 |
| Supported Outputs | Ethernet, HDMI, 3.5mm Stereo |
| Audio Output Types | 3.5mm Stereo |
| Maximum Video Outputs | 2 |
| Supported Video Resolution | 4K 30Hz 4:4:4 |
| Supported Audio Formats | Dolby Digital 2.0, Dolby Digital 5.1, LPCM 2.0, PCM 2.0 |
| Control Method | IP, RS232 |
| IR Control | N/A |
| Multiroom Capable | No |
| HDMI Version | HDMI® 2.0 |
| HDCP | HDCP 2.2 |
| MSRP | £0.00 |
