Just Add Power - 3G POE 4 Input Rackmount Transmitter Encoder
SKU: UL-747POE
Dispatched today! (Order by 2pm)
Distribute up to four 4K video and lossless audio signals with the 3G POE 4-in-1 Rackmount Transmitter.
A trade-only supplier of installed audio-visual custom technology for resimercial projects.

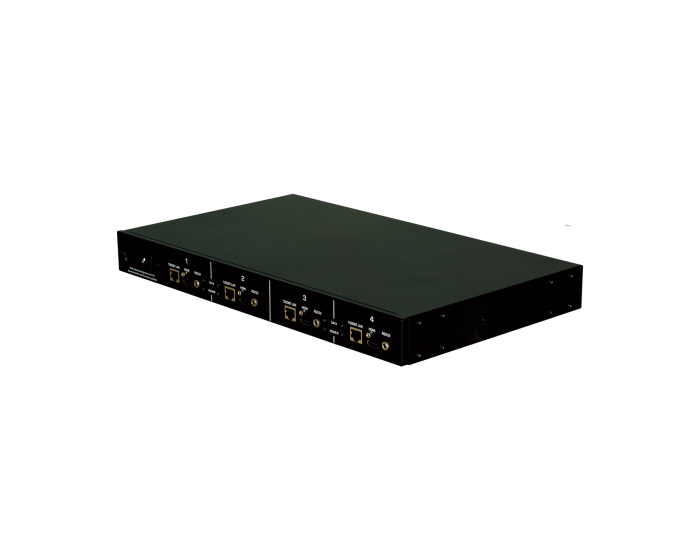

3G ULTRA 747POE Rackmount: All Audio Capable Transmitter
The Just Add Power 3G Ultra 747POE 4-in-1 Rackmount Transmitter supports all lossless audio formats – including Dolby Atmos ®.
Distribute 4K video and lossless audio over Cat5e cable to every zone - along with all the 4K system wide features from the 3G Ultra product line. Mix-and-match with other 3G Ultra Transmitters to distribute any audio format to any zone.
The 747POE 4-in-1 Rackmount Transmitter encodes a 4K or lower-resolution source device into an IP signal and sends it over the network with ultra-low latency and instant switching; along with all the 4K system wide features from the 3G Ultra product line.
Features:
- Audio: All lossless audio supported - including Dolby Atmos ®
- HDCP 2.2 Support: Display content with HDCP 2.2 copy/content protection on any HDMI screen in system
- Image Pull: Preview an image from any source or display in any web browser or control system - up to 10 fps
- Integrated Endpoint Control: Control endpoints with RS232, IR, and CEC
- Scalability: Fully compatible with all 3G Ultra and 2G Omega products
- Encodes a 4K or lower source device into IP & sends over the network
- Supports multi-channel including high-resolution digital audio formats
- Instant-Seamless switching
- 23 ms ultra low latency
Specification:
- Bandwidth: 180-500 Mbps
- Compliance: HDCP 2.2 | RoHS/FCC/CE
- Dimensions & Weight: 429 x 44.5 x 250 mm | 17” x 1.75” 9.8” in | (19-inch rack, 1 RU) | 3.0 kg / 6.6 lb
- Encryption: Hardware-Based AES 256-bit | Encryption of network video signal
- Operating Temp: 0-60 °C / 32-140 °F
- POE: 40 watts maximum
- Ports: 4 x Gigabit Ethernet | 4 x HDMI In | 4 x 3.5mm RS232 w/null modem
- Power Supply (included): Standard Power Cable IEC 60320 C13/C14
- Supported Resolutions: Up to 4096x2160 (interlaced & progressive)
| Shipping Weight (kg) | 3.000000 |
|---|---|
| Type | AV over IP |
| Manufacturer | Just Add Power |
| Product Range | 3G |
| Application | Residential, Commercial |
| Resolution Support | 4K |
| Warranty | 5 years |
| Colour | Black |
| Form Factor | Rackmount |
| Input Types | HDMI |
| Audio Input Types | N/A |
| Maximum Video Inputs | 4 |
| Supported Outputs | Ethernet |
| Audio Output Types | N/A |
| Maximum Video Outputs | 4 |
| Supported Video Resolution | 4K 30Hz 4:4:4 |
| Supported Audio Formats | Dolby Digital 2.0, Dolby Digital 5.1, LPCM 2.0, PCM 2.0 & All lossless audio formats |
| Control Method | IP, RS232 |
| IR Control | N/A |
| Multiroom Capable | No |
| HDMI Version | HDMI® 2.0 |
| HDCP | HDCP 2.2 |
