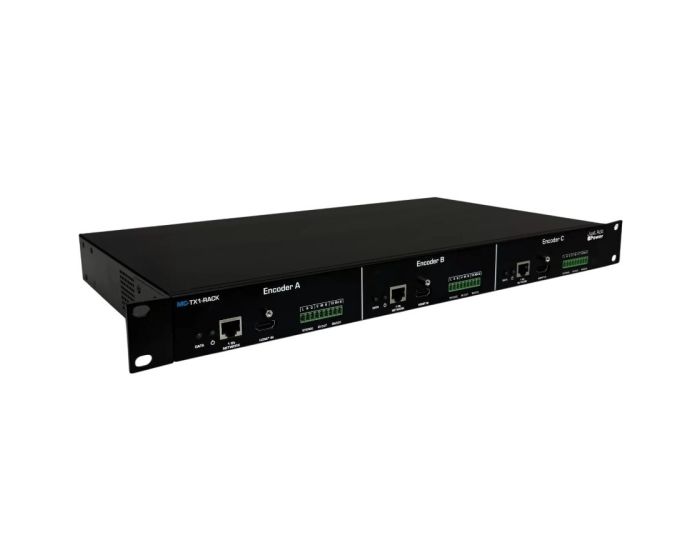

The MaxColor™ 4K60 MC-TX1 Rackmount Encoder features a 3-in-1 design—three individual MC-TX1 units integrated into a single rackmount solution—giving you triple the power in a compact footprint. This innovative encoder natively supports 4K60 input, allowing for the seamless distribution of 4K UHD video without downscaling or subsampling.
With MaxColor, you can deliver stunning 4K60/4:4:4/36-bit video over a standard 1Gb managed network using existing Cat 5e/Cat 6 cabling—eliminating the need for costly fiber upgrades and specialized switches. Build your AV system entirely with MaxColor 4K60 Encoders (Transmitters) and Decoders (Receivers).
Specification:
Bandwidth: 850 Mbps.
Compliance: FCC/CE/ROHS/RCM.
Dimensions & Weight: 429 x 44.5 x 250 mm | 16.9 x 1.75 x 9.8 inch | (19-inch rack, 1 RU) | 2.65 kg / 5.85 lb.
Encryption: AES256 Hardware Based Crypto Engine.
HDMI Standard: HDMI 2.0b/2.1.
HDCP: 2.2, 2.3.
Operating Temp: 0-60 °C / 32-140 °F .
POE: IEEE 802.3af (15.4W).
Ports: 3x RJ-45 (1Gb Network) | 3x HDMI In | 3x 3-pin Euroblock Stereo Out | 3x 3-pin Euroblock IR Out | 3x 3-pin Euroblock 2-Way RS232.
Supported Audio & Video: Audio: All Audio Formats & Audio Return Channel | Video: Up to 4K60 with 36-bit color YCbCr444/422/420, RGB444, ICtCp444 HDR10, HDR10+, HLG, Dolby Vision, SDR.
Power Supply not included.
Features:
Audio: Supports all audio formats.
Color Depth: Supports deep color up to 36-bit.
HDR Support: HDR10, HDR10+, HLG, Dolby Vision, and SDR.
Integrated Endpoint Control: Control endpoints with CEC, IR, RS232.
Image Pull: Preview an image from any source or display, in any web browser or control system, at up to 30 fps.
Scalability: Fully compatible with all MaxColor products.
Supported Resolution: Computer and video resolution 4K60 @ 4:4:4.
