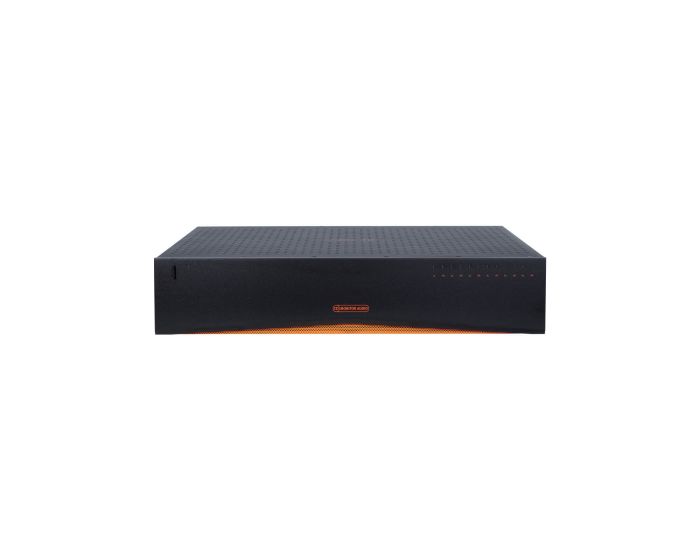

The IA60-12 delivers flexible, powerful performance in a highly efficient form, making it ideal for expansive multi-zone installations.
12-channel flexibility with premium Hypex amplification.
Capable of powering up to 12 channels (6 stereo pairs), the IA60-12 can be configured to run as 1, 2, 3, 4, 5, 6 or 12 channels. Employing Hypex amplifier technology, it’s engineered for clarity, efficiency, and versatility in custom installations.
Key features:
- 12 channels (6 stereo pairs) of amplification
- Configurable output: 1 to 12 channels
- Hypex Class D amplifier technology
- High-performance, efficient multi-zone solution
Specification
- Connect IP Control: N/A
- Channel Number: 12 (6 Stereo Pairs)
- Power (W / Channel) | 4 ohms: 60 W
- Power (W / Channel) | 8 ohms: 45 W
- Power (W / Channel) | Bridge (8 ohms): 100 W (6CH)
- Power (W / Channel) | 70V: N/A
- Input Impedance: 20 K ohms
- Output Impedance (Loop RCA): 600 ohms
- Input Sensitivity: 100 mV / 1 W, 700 mV – Full power
- Maximum Input Voltage: 2.9 V
- Signal to Noise (SN:R): -100 dB (20 Hz – 20 kHz)
- Frequency Response: 5 Hz – 50 kHz
- Total Harmonic Distortion THD + N@1 KHz: 0.03%
- Rack Height: 2U
- Dimensions (Excluding Feet (H x W x D)): 86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16")
- Dimensions (Including Feet (H x W x D)): 97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16")
- Width (including rack brackets): 482 mm (19")
- IP Communication: N/A
- Mains Operating Voltage: 100 –120 V @ 60 Hz | 220 – 240 V @ 50 Hz
- Fuse Rating: 10 A (T10AL ~ 250VAC)
- Standby Power Consumption: <0.5 W (green mode)
- Networked Standby Power Consumption: N/A
- Weight: 7.34 kg (16 lb 2 oz)
- Sold As: Single Unit
- Warranty: 5 years
| Shipping Weight (kg) | 8.000000 |
|---|---|
| Manufacturer | Monitor Audio |
| Type | Multi-zone Amplifier |
| Product Range | Streamers & Amplifiers |
| Environment | Indoor |
| Frequency Response | 5 Hz – 50 kHz |
| MSRP | £1,158.33 |
