Atlantic Technology IWTS 30 THX Demo In-wall Speaker
If you want excellence in every aspect of home cinema performance - but want this installed into your walls, then look no further than the IWTS-30-LCR's. These extremely high specification speakers are one of the highest performing in-wall speaker systems out there, as Peter Tribeman - President of Atlantic Technology points out:
"The IWTS-30 LCR is flat-out the best sounding in-wall we've ever made, and it makes no apologies for being an in-wall. We know of no other architectural solutions that deliver this kind of performance and flexibility at anywhere near this price point.”

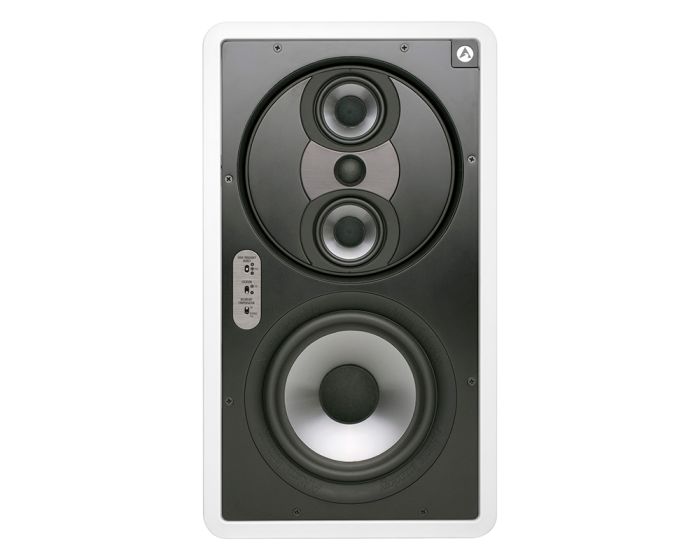

The IWTS-30 LCRis their top-of-the-line in-wall speaker. It's an exceptionally sophisticated speaker whose lineage traces directly to the highly regarded System 8200e. The 30 LCR is a 3-way design using an 8" woofer, dual 3 ½" midranges and Atlantic's exclusive LRT™ tweeter in an M-T-M array.
The entire M-T-M assembly rotates 90 degrees so the midranges and tweeter can be kept in the correct vertical orientation whether the speaker is installed horizontally or vertically. The assembly also can tilt up to 8 degrees, so the sound can be precisely directed at the listening position--up, down, left, or right-- regardless of where the speaker is placed in the room. This unique rotatable/tiltable assembly retains optimum vertical alignment. Even if speaker is installed horizontally; it allows mid/high-frequency sound to be directed precisely at listening position.
Particularly noteworthy are Atlantic's proprietary new midrange drivers. Utilizing oversized 1" voice coils and massive magnets for high efficiency, these drivers exhibit exceptionally low distortion and tremendous power-handling ability. The 30's remarkable clarity and detail is attributable in large measure to these amazing new drivers.
Specification
- Type: 3 way, M-T-M array
- Drivers: 1 x 8" (203mm) GLH* long throw woofer w/Butyl rubber surround and high power motor, 2 x 3 1/2" (89mm) GLH* midranges w/1" voice coils & 1 x 1' (25mm) Low Resonance Tweeter w/Neodymium magnet and Ferrofluid cooling
- Configuration Controls: High frequency Level, Location (Behind screen or free-firing) & Boundary (Near wall/corner or mid-wall)
- Frequency Response: 55Hz - 20kHz +/-3dB
- Sensitivity: 89dB, 1 watt, 1 meter
- Impedance: 6 Ohms
- Crossover frequencies: 500Hz, 2200Hz
- Recommended amplifier power: 25 - 200 Watts RMS
- Optimum wall volume: 1.0 cu.ft.
- Overall Dimensions: 312 x 547 x 100mm (W x H x D)
- Cutout dimensions: 283 x 518mm(W x H)
- New Construction Bracket (optional): IN-NC-626
- Back Box (optional, but req'd for THX certification): IN-BOX 30 LCR for new construction
- Weight: 6.9kg
Shipping Weight (kg) | 7.000000 |
---|---|
Type | In-wall Speaker |
Manufacturer | Atlantic Technology |
MSRP | £1,333.33 |
