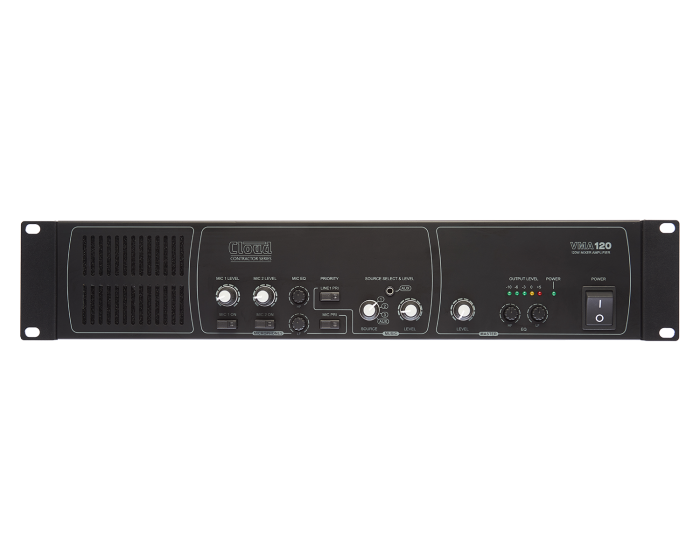

VMA120 - Mixer Amplifier
The Cloud VMA120 is an cost-effective mixer-amplifiers for use in all types of commercial premises. It has been designed to be as simple to install and operate as possible, but offers a useful range of features and configuration options. The units are mono power amplifiers combined with a simple mixer stage. The output may be used to drive either low-impedance loudspeakers directly (4 ohms minimum) or 25/70/100 V-line loudspeaker distribution systems.
Features:
- Power output: 120 W/channel .
- Outputs suitable for either low-impedance (min. 4 ohm) or 25/70/100 V-line systems.
- Four stereo unbalanced line inputs (3 x RCA jack pairs, 1 x 3.5 mm TRS jack on front panel).
- Rear panel line inputs have individual gain controls.
- Two balanced mic inputs (1 x multipin connector, 1 x ¼” TRS jack), with individual preset gain controls.
- Front panel controls for mic and music levels, line input selection, mic EQ, master level and EQ.
- Mic input mute switches on front panel.
- Line 1 priority, enabled by front panel switch.
- Mic-over-music priority, enabled by front panel switch.
- 15 V phantom power available at either mic input .
- 100 Hz high-pass filter on each mic input .
- 70 Hz high-pass filter in output stage, for use with 25/70/100 V-line systems.
- Fixed limiter – prevents clipping.
- Front panel LED bargraph – indicates output signal level.
- Over-temperature and output DC protection.
- 230 V or 115 V operation.
- Forced-air cooling.
| Shipping Weight (kg) | 9.570000 |
|---|---|
| Manufacturer | Cloud Electronics |
| Type | Amplifier |
| Product Range | Mixer Amplifier |
| MSRP | £340.00 |
