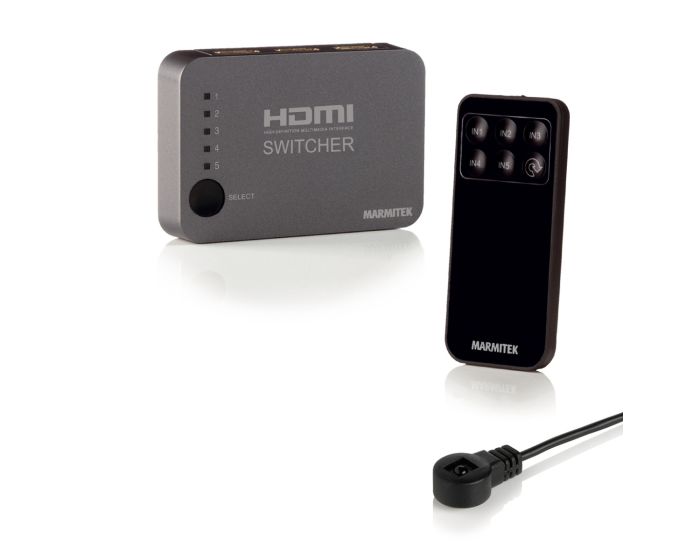

Only one cable to your TV screen! Switch between the HDMI devices connected
Suitable for connecting 5 HDMI sources to your TV simultaneously. You just need 1 HDMI input and you never have to switch cables again.
For connecting a game console like PlayStation and Xbox, Blu-ray Player, satellite receiver and all other HDMI devices.
Full HD 1080p.
Switches automatically and/or with remote control.
With separate IR receiver for operating the switcher when it is placed out of sight.
Kit Contents
1x HDMI Switcher
1x Remote control (battery included)
1x Power adaptor
1x Infrared receiver
1x User manual
Technical Data
Resolution
Supported HDTV Resolutions 480p, 576i, 576p, 720p, 1080i, 1080p
Supported PC Resolution (max) 1920 x 1200
Maximal Pixel Frequency (max) 225 MHz
Maximal Bit Rate (max) 2.25 Gbps
In- and outputs
HDMI Input (19-pin female) 5 HDMI
HDMI Output (19-pin female) 1 HDMI
Maximal HDMI cable length 15 metres
Remote control
Infrared remote control Battery included CR2025
Housing Switcher
Dimensions (H x W x D) 80 x 18 x 58mm
Weight 250 g
Ambient
Ambient temperature +0 to +40 C
Ambient humidity 10% to 85%
Power
External power adaptor Input: 100-240VAC @50-60Hz Output: 5VDC @ 300mA
| Shipping Weight (kg) | 0.300000 |
|---|---|
| Manufacturer | Marmitek |
| Type | Video Switcher |
| Warranty | 1 year |
| Colour | Grey |
| Main Power | 5V |
| Input Types | HDMI |
| Maximum Video Inputs | 5 |
| Supported Outputs | HDMI |
| Maximum Video Outputs | 1 |
| Supported Audio Formats | Dolby Digital 5.1 |
| Control Method | IR |
| IR Control | Yes |
| Multiroom Capable | No |
| HDMI Version | HDMI® 1.3 |
| HDCP | HDCP 1.1 |
| MSRP | £37.46 |
